GitLens Documentation

Manage Parallel Development from the Commit Graph

Last updated: November 2026

Developers and coding agents can work across multiple branches, worktrees, and tasks at the same time. Each one adds a parallel stream of work to understand and coordinate.

The Commit Graph shows those streams together in one place. See what is changing and where, find what needs your attention, and move work forward without switching between branches, terminal sessions, and separate views.

The Commit Graph in the GitLens side bar: the branch toolbar with Push and Fetch, the natural-language search box, the selected Working Changes row, and commit rows with their branch and tag pills.
GitLens Commit Graph

1. See All Active Work

Start in the Commit Graph to get a connected view of your repository and the work happening across it.
See branches, worktrees, working changes, commits, HEAD, upstream, merge targets, and ahead and behind status together, so you can tell how each stream of work relates to the rest of your repository.

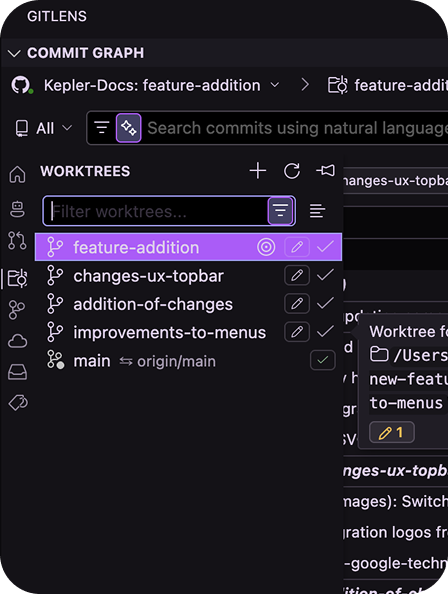

The Worktrees sidebar in the Commit Graph, listing five worktrees with the feature-addition worktree selected

Multi-worktree WIP also surfaces working changes across your worktrees, so active work stays visible even when you are not working in that worktree. Each worktree’s Working Changes row shows the worktree’s branch as a pill inside the row; select the pill to jump to that branch. A Worktree marker beside the row names the worktree it belongs to. When a rebase, merge, or similar operation is paused in a worktree, its row shows that state, such as the number of conflicts left to resolve.

Commit Graph with a Working Changes row for each of three worktrees: the main worktree's row at the top, then the feature/api-hardening and docs/contributing-refresh worktree rows, each with its changed-file count and inline branch pill, above that branch's unpushed commit

2. Monitor Agent Work

When coding agents are working in parallel, GitLens keeps supported agent activity connected to the branches and worktrees where that work is happening.

From the Commit Graph, you can:

  • Monitor supported coding agent sessions
  • See which sessions are working, idle, or need attention
  • Understand which branch and worktree an agent is working in
  • Jump into the work associated with an agent session
  • Open live sessions, and resume past sessions with the surrounding Git context intact
The Working Changes details panel with its Agents section expanded: three agent session cards — "Add retry logic to the rate limiter middleware" marked Working with the file it is editing, "Review the authentication module for discrepancies" marked Idle, and "Update README with API rate limiting docs" marked Past — above the changed files and the commit box.
The Working Changes details panel with its Agents section showing a session that needs input: it asks to edit user-management.ts and offers Allow, Always Allow and Deny, above the changed files and the commit box.

Instead of tracking agent work across separate terminal sessions, you can see where the work lives and when it needs you.

View an Agent Session’s Details

Select a session card in the Agents section of the Working Changes details panel to open that session’s details sheet. The sheet includes:

  • The session’s status, such as how long it has been working, waiting for your input, or idle
  • Pending requests you can answer in place with Allow, Always Allow, or Deny, or with Approve Plan or Reject Plan for a plan
  • File Activity, which lists the files the agent read and edited
  • The session’s Last prompt and First prompt
  • Also worked in, which lists other worktrees the session worked in

Use the Previous Agent Session and Next Agent Session buttons to move between sessions without closing the sheet. A live session offers Open Session. An ended session offers Resume and, when the agent supports it, Archive.

Resume Past Sessions

When an agent session ends, GitLens lists it as Past. In the Agents section, past sessions appear after the live ones; select Show More to load older sessions. In the Agent Sessions sidebar panel, select Show Past Sessions to include them. Select Archive Session on a past session to remove it from these lists.

You can resume past sessions from Claude Code, Codex, OpenCode, and GitHub Copilot CLI. Each resume action names where the session opens:

  • Resume in Terminal opens a new integrated terminal in the session’s folder and resumes the session there.
  • Resume in Claude Code Extension opens the session in the Claude Code extension. This action appears only for Claude Code sessions, when the extension is installed and the session’s folder is open in your workspace.

If both destinations are available and you resume without choosing one, for example by pressing Enter in the Resume Agent Session list, GitLens asks where to resume and lets you pin your choice. The pinned choice is stored in the gitlens.agents.resumeTarget setting:

  • Not set (default): Ask each time, with an option to remember the choice.
  • terminal: Always resume in a new integrated terminal.
  • extension: Resume in the agent’s VS Code extension when it can open the session, otherwise in a terminal.

3. Understand Changes Across Worktrees

Worktrees let developers and agents work on multiple branches from the same repository without constantly switching branches or stashing changes.

GitLens shows the work in progress in those worktrees in the Commit Graph, so you can follow parallel development from one place.

Use Multi-WIP to see working changes across multiple worktrees, find which branches have active work, and move between parallel streams without losing track of the rest of the repository.

Scope the Graph to a Worktree

Scope the Commit Graph to another worktree to act in that worktree without switching windows. While the graph is scoped, it treats that worktree as the one you have open: you see its branch and its working changes, and anything you commit, push, or pull from the graph happens in that worktree. To scope the graph, do one of the following:

  • In the Worktrees panel of the Commit Graph sidebar, select Scope to Worktree on the worktree’s row. Hold Alt (⌥ on macOS) while selecting it to use Focus on Branch instead.
  • Right-click the worktree’s Working Changes row, or its row in the Worktrees panel, and select Scope to Worktree.
  • Double-click the worktree’s Working Changes row or its pill in the overview bar.

While the graph is scoped, the worktree’s row in the Worktrees panel shows Scoped, and the branch pill in the graph header is marked in yellow. To return to your active worktree, select Unscope Worktree in the graph header.

These settings control scoping and the overview bar:

  • gitlens.graph.scopeBehavior: scopeAndFocus (default) also focuses the worktree’s branch, narrowing the visible rows. scope leaves every commit visible.
  • gitlens.graph.doubleClickWorktreeAction: scope (default) scopes the graph when you double-click a worktree. focus toggles branch focus instead.
  • gitlens.graph.overviewBar.visibility: dirtyWorktrees (default) shows the overview bar when another worktree has working changes or unpushed commits. worktrees shows it when the repository has more than one worktree, always always shows it, and never hides it.

Run Tasks in a Worktree

Each Working Changes row has a Run Default Task button that runs a VS Code task in that row’s worktree. The first time you select it, choose the task to use as the default; after that, the button runs the default task directly. Hold Alt (⌥ on macOS) while selecting the button to choose a different task. While a task runs, the button’s tooltip reads Running: followed by the task name, and selecting the button shows the running task instead of starting another.

You can also right-click a worktree’s Working Changes row, or a worktree in the Worktrees view, and select Run Task on Worktree…. In the task list, select the checkmark next to a task to set or unset it as the default.

4. Review Work as It Happens

You do not have to wait until parallel work becomes a pull request to understand what changed.

Select Review Changes… on a Working Changes row to review human or agent-generated work while it is still in progress. Read the changed files and mark each one viewed, add an AI review with Review Diff, or hand the review to your coding agent with Review in Repo. When another pass is needed, send the whole review, a focus area, or a single finding to your agent with the Address … with Agent actions. See Review Changes in the Commit Graph.

Commit Graph in Review mode: the Reviewing Changes panel with Uncommitted and Branch scope presets above the unstaged changes and the unpushed commit, a checklist reading "1 of 3 viewed" with one file checked as viewed and README.md marked excluded, and an instructions box with Review Diff, Orient and Review in Repo.

Reviewing work earlier helps keep changes understandable before multiple streams of development come back together.

5. Shape and Compare the Work

Once changes are ready, use Commit Composer to turn scattered work into clean, logical commits that are easier to understand and review.

Organize related changes, move work between commits, reorder and refine commits, and use GitKraken AI to shape the resulting history.

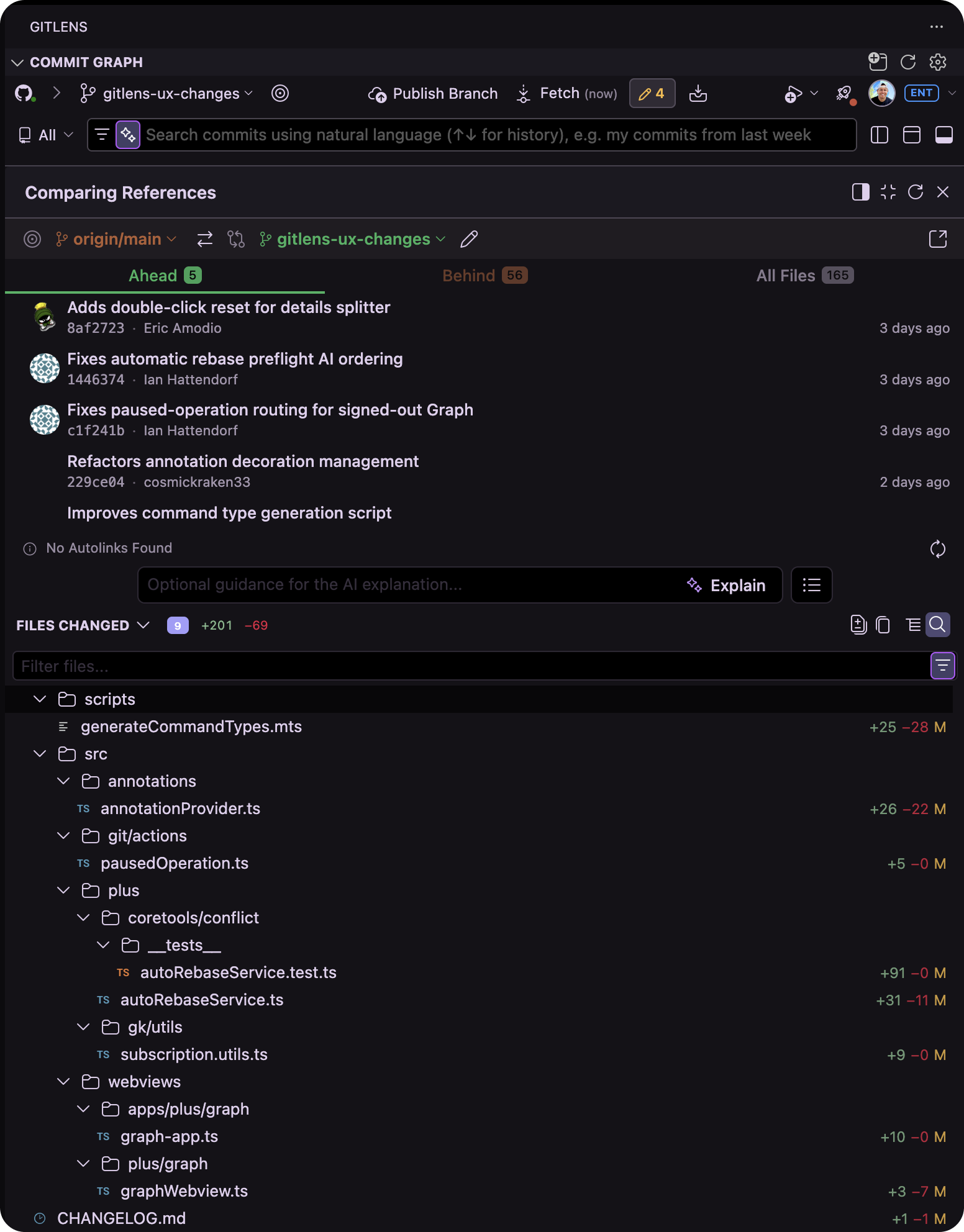

The Commit Graph's Comparing References panel comparing origin/main with a branch, showing its Ahead, Behind and All Files tabs, the ahead commits, and the changed files

Then use Compare directly from the Commit Graph to compare commits, branches, revisions, and working changes so you can see exactly what is different before moving forward.

6. Prepare Parallel Work to Land

As parallel branches come back together, GitLens helps you handle the Git work required to prepare them for merge.

Use Auto-Rebase to rebase with GitKraken AI while you stay in control of the result. If overlapping work creates merge conflicts, use AI-assisted conflict resolution to understand and resolve the competing changes with the surrounding repository context in view.

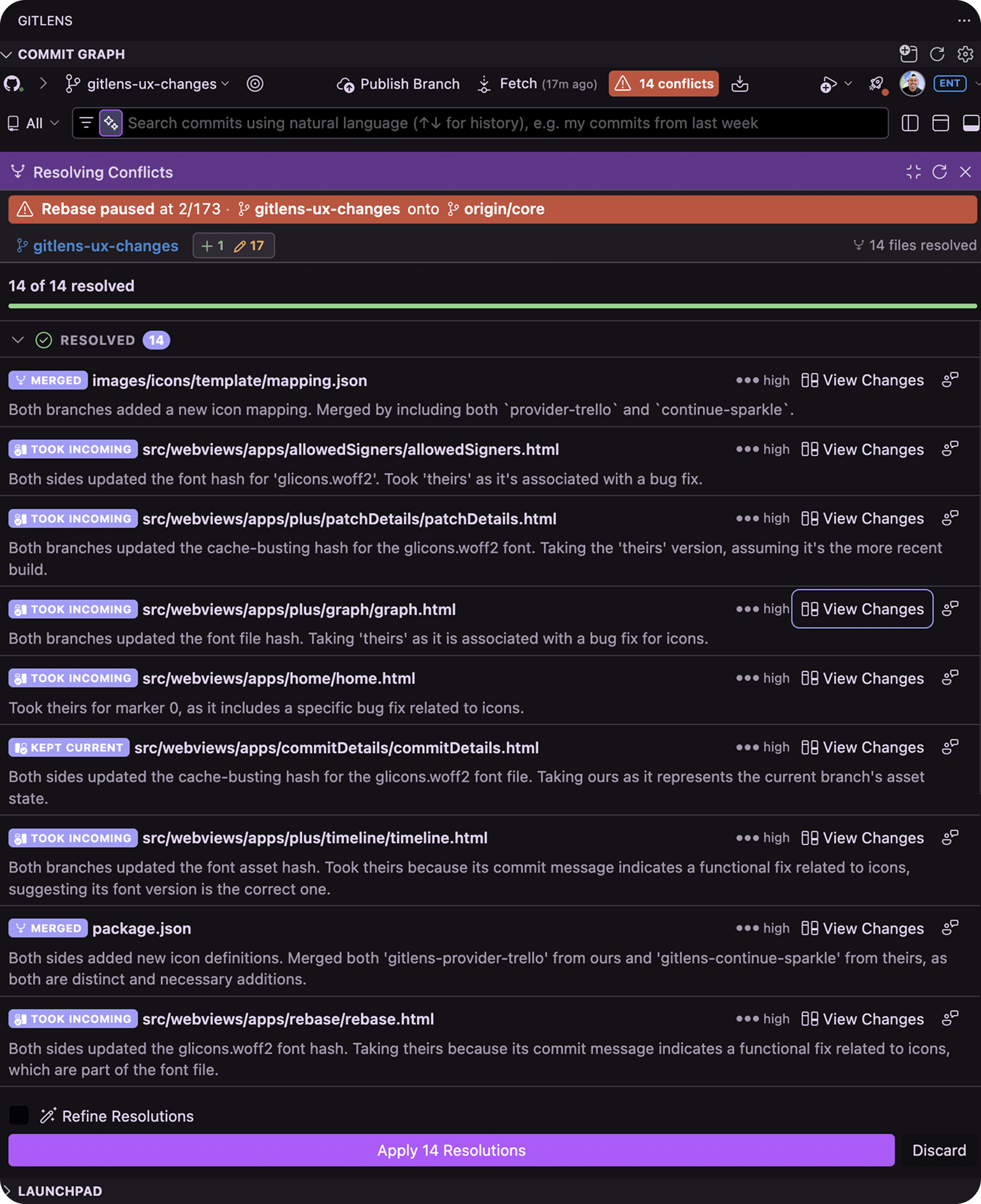

The Commit Graph's Resolving Conflicts panel during a paused rebase: 14 of 14 conflicts resolved, each listed file with its resolution, confidence and View Changes, above the Apply 14 Resolutions button

You finish the work in the same Commit Graph where you monitored and reviewed it, without leaving it to untangle the final steps by hand.

Keep Parallel Development Under Control

The Commit Graph gives you one place to follow parallel development from active work to merge readiness. From it, you can:

  • See every stream of work
  • Know what needs your attention
  • Review and shape the changes
  • Get parallel work ready to merge
Have feedback about this article? Did we miss something? Let us know!
